雙向導向
緊湊的設計，不受安裝方向的影響

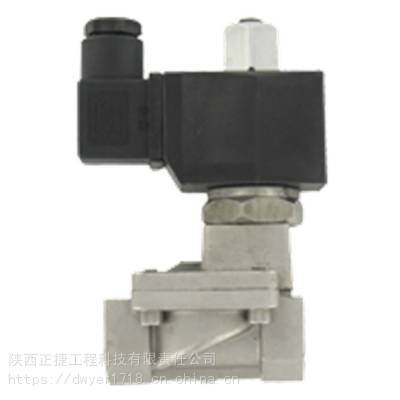

SSV-S系列電磁閥是用于空氣、氣體、水和其他液體應用的緊湊型通用雙向導向型電磁閥。它們采用不銹鋼材質(zhì)，常開設計，可在任何位置定向。電磁閥外殼提供防塵保護，同時也防止油和非腐蝕性冷卻液滲漏。SSV-S系列閥門裝配有氟橡膠密封件，工藝溫度為248°F（120°C）。該系列提供了廣泛的閥門尺寸和流量范圍，連接尺寸從1/8“到2”NPT，孔口從3 mm到50 mm。
產(chǎn)品應用
用途廣泛，適用于空氣、氣體、水和其他液體
特征
可以在任何位置定向
緊湊型設計
現(xiàn)場可更換線圈

Service:Compatible gases and liquids.

Line Size:1/8 to 2" NPT.

End Connections:Female NPT.

Operating Pressure:1/8 to 1/4": 0 psi (0 bar) to 87 psi (6 bar); 3/8 to 2": 7.3 psi (0.5 bar) to 116 psi (8 bar).

Pressure Limit:174 psi (12 bar).

Wetted Material:Body: 316 SS; Spring: 304 SS; Seal: Fluoroelastomer.

Temperature Limits::Process: 248°F (120°C); Ambient: 32 to 149°F (0 to 65°C).

Power Requirements:Standard: 110 VAC; Optional: 220 VAC; 24 VDC consult factory. See Series SRC Solenoid Coils.

Power Consumption:See table on catalog page.

Enclosure Rating:NEMA 13 (IP54).

Electrical Connection:DIN connection.

Other Materials:Nylon.

Mounting Orientation:Any position, best if solenoid vertically above valve.

Weight:See table on catalog page.

Type of Operation:NO.

Agency Approvals:CE.

Model    Description
SSV-S1F1    2-way 316SS solenoid valve, 1/8", 0-6 bar, fkm seal, 110 VAC
SSV-S1F2    2-way 316SS solenoid valve, 1/8", 0-6 bar, fkm seal, 220 VAC
SSV-S1F3    2-way 316SS solenoid valve, 1/8", 0-6 bar, fkm seal, 24 VAC
SSV-S1F4    2-way 316SS solenoid valve, 1/8", 0-6 bar, fkm seal, 24 VDC
SSV-S2F1    2-way 316SS solenoid valve, 1/4", 0-6 bar, fkm seal, 110 VAC
SSV-S2F2    2-way 316SS solenoid valve, 1/4", 0-6 bar, fkm seal, 220 VAC
SSV-S2F3    2-way 316SS solenoid valve, 1/4", 0-6 bar, fkm seal, 24 VAC
SSV-S2F4    2-way 316SS solenoid valve, 1/4", 0-6 bar, fkm seal, 24 VDC
SSV-S3F1    2-way 316SS solenoid valve, 3/8", 0.5-8 bar, fkm seal, 110 VAC
SSV-S3F2    2-way 316SS solenoid valve, 3/8", 0.5-8 bar, fkm seal, 220 VAC
SSV-S3F3    2-way 316SS solenoid valve, 3/8", 0.5-8 bar, fkm seal, 24 VAC
SSV-S3F4    2-way 316SS solenoid valve, 3/8", 0.5-8 bar, fkm seal, 24 VDC
