9012 Industrial Pressure Switches

9012GJW1

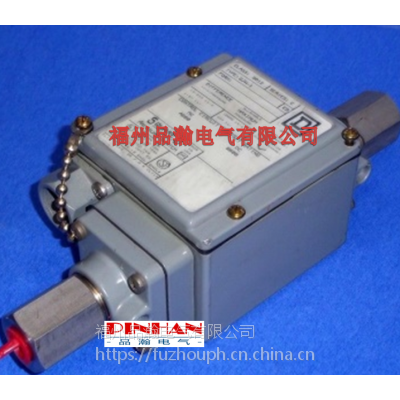

Pressure switch 9012G - adjustable scale - 2 thresholds - 0 to 5000 psig

Main

range of product

9012G

pressure sensor type

Electromechanical pressure switch

pressure sensor name

9012G

pressure sensor size

5000 psi

maximum pressure

7500 psi

contacts type and composition

NC-NO, SPDT-DB, Form Z, snap action, silver nickel contacts

controlled fluid

Air

Non-corrosive liquids

Non-corrosive gas

Hydraulic oil (-15...250 擄F)

fluid connection type

0.25 inch 18 NPTF conforming to UL 508

pressure switch type of operation

Monitors the difference between 2 thresholds

scale type

Adjustable differential

local display

Without

Complementary

range on decreasing pressure

0...5000 psi

approx adjustable differential at mid range

80...200 psi increasing

15...825 psi decreasing +/- 2.5 % full scale

cable entry

0.5 inch NPT conduit entrance

terminal block type

4 screw terminals

electrical connection

Screw-clamp terminals, AWG 22...AWG 12

electrical circuit type

Control circuit

local signalling

Without

[In] rated current

3 A (Ue = 240 V AC) contact code: A600 conforming to NEMA rating designation

6 A (Ue = 120 V AC) contact code: A600 conforming to NEMA rating designation

0.27 A (Ue = 250 V DC) contact code: R300 conforming to NEMA rating designation

0.22 A (Ue = 125 V DC) contact code: R300 conforming to NEMA rating designation

setting

Internal

enclosure material

Die cast aluminium alloy 380

pressure actuator

Piston

height

8.55 in

depth

2.63 in

width

3.5 in

operating position

Any position

materials in contact with fluid

Teflon

Viton fluorocarbon

440 stainless steel

303 stainless steel

short-circuit protection

10 A by gL (cartridge) overload and short-circuit protection

operating rate

<= 120 cyc/mn

mechanical durability

3000000 cycles

repeat accuracy

4 %

product weight

2.5 lb(US)

Environment

vibration resistance

2 gn conforming to IEC 68-2-6 (f = 40...150 Hz)

shock resistance

50 gn conforming to IEC 58-2-27

standards

CE

UL 508

CSA C22.2 No 14

product certifications

CE

CSA LR25490 class 3211 03

UL listed file E12158 CCN NKPZ and CCN NTHT

NEMA degree of protection

NEMA 4/4X/13 conforming to UL 50

ambient air temperature for operation

-10...185 擄F

Ordering and shipping details

Category

21522 - 9012 G INDUSTRIAL PRESSURE SWITCHES

Discount Schedule

CP7G

GTIN

00785901048718

Nbr. of units in pkg.

1

Package weight(Lbs)

2.5

Returnability

N

Country of origin

MX
