東莞市恒好激光科技有限公司

廠家直銷

GL-E系列激光雕刻機

具體型號：GL-E laser engraving machine

GL-640C、GL-960C、GL-1080C、GL-1280C、GL-1390C、GL-1480C、GL-1680C、GL-1610C、GL-1810C等常規備貨機型，

支持定做,廠家直銷！It can be customized,Factory Direct

機型簡介Means of indicators

        GL-C激光切割機是一款專門為裁切行業而設計的機型，下吸風、分體式結構，主要體現速度快效果好切口不發黃的特點。機器采用X軸Y軸細分步進系統，配有三條進口直線導軌，進口三相步進電機，全不銹鐵蜂窩底板平臺，新加坡光路系統，在電路控制系統上采用DSP控制技術，高效穩定的開關電源，USB數據傳輸，使整機工作更穩定，速度更快，精度更高，其廣泛應用在服裝皮革、箱包手袋、鞋面加工、玩具開料、亞克力切割、工藝品雕刻、電子產品切割等要求較高的行業。

      GL-C laser cutting machine is a dedicated to artworks and high precision products carving face design of aircraft, mainly reflected faster of the two high precision characteristics ,X-axis machines Y-axis stepper system imports three –phase stepper motor ,all stainless cellular on floor platform,Singapore optical syserm ,the circuit control system using DSP technology, a higGLy efficient and stable power supply switches, USB data transmission ,unit work more stable ,faster ,more precise its widely used in carving handicrafts , rubber hardcory sculpture , electronic products , sculpture,photography images carving handicrafts , rubber hardcopy sculpture, electronic products , sculpture , photography images carving, sculpture ,etc. Model for carving high precision industries

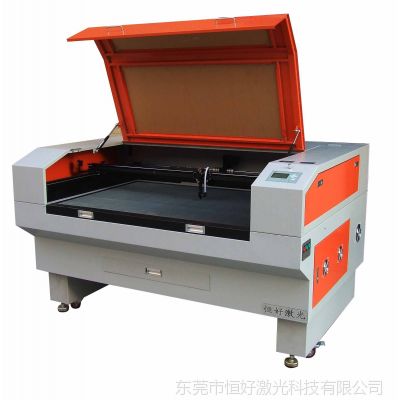

機器圖片展示

具體特點Specific features

詳細配置Detailed configuration

A.  美國***步進電機及驅動系統

a.   USA imported fully stepper motor and drive systems

B GOODLASER控制系統

b. GOODLASER control system

C.采用國外進口直線導軌

c. Foreign imports in linear guideway

D.雙傳輸方式：工業串口、USB串口

d. Dual transmission of USB 2.0

E.中英文液晶顯示，人性化按鍵控制板

e. Chinese/English LCD,humanity button panels

F.國產激光器（65/70/80/100）選配

f. Homemade laser(65/70/80/100)matching

G.光路系統采用新加坡全進口激光鏡片

g. Optical system uses laserSingapore imports all lenses

H.高強度不銹鐵蜂窩底板

h. High strength stainless Rail cellular integration backplane

I.機箱一體化結構

i. Chassing integration structure

J.支持U盤下載數據

j. Support U-download data

技術參數technical-parameters

產品型號/Machine model        GL-1280C

激光類型/Laser type           國產CO2激光器hermetic and detached co2 laser tube

激光功率/Laser power          65w/70w/80w/100W

雕刻面積/Engraving area        1200*800

雕刻速度/Engraving speed       0-1500mm/s

切割速度/Cutting speed         0-800mm/s

重復精度/Repeating locating      ±0.03mm

運動系統/Moving system        CNC控制系統CNCcontrolling units

冷卻方式/Cooling mode         強制水冷及保護系統water-cooling and protection system

工作電壓/Working voltage       220±10% 50HZ

整機功率/Whole power          1250w

工作溫度/Operating temperature   0℃-45℃

工作濕度/Operating humidity     5%-95%

控制軟件/Controlling software    正版恒好激光設軟件original Goodlaser software

支持格式/Graphic format supported  BMP PLT AI DXF DST

外形尺寸/Size                   1350*1150*1050

整機重量/Gross weight            230 kg

適用材料Applicable Materials

本品適用于木制品、紙張、皮革、布料、有機玻璃、環氧樹脂、亞克力、毛料、塑料、橡膠、瓷磚、水晶、玉石、竹制品等非金屬材料。

Wood . paper . leather . choth . organic glass . resin . acrylic . wollens . plastic . rubber . ceramic tile .Crystal . bowlder bamoo bnd other non-metal material.

適用行業Applicable Industry

廣告標識標牌、工藝禮品、水晶飾品、剪紙工藝、浮雕、竹木簡雕刻工藝、印刷制版、服裝皮革、刺繡、裝飾裝修、相框制作等行業

Advertising signs logo,process gifts ,crystal ornaments,paper cutting techniques,relief,bamboo carving simple,the printing plate,leather clothing ,plexiglass,decoration,frame production
